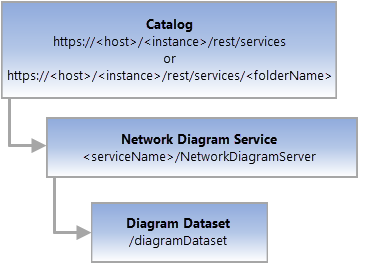

- URL:https://<networkdiagramserver-url>/diagramDataset
- Version Introduced: 10.6.1
Description
The Diagram Dataset resource regroups the info related to each diagram template under a Network Diagram service. It returns an array of diagram template info.
License:
The active portal account must be assigned a license with the ArcGIS Advanced Editing user type extension to use this resource.Request parameters
| Parameter | Details |
|---|---|
| gdbVersion | Description: The name of the geodatabase version. Syntax: gdbVersion=<version> Example: gdbVersion=ABV1 |
| sessionId | Description: The token (guid) used to lock the version. Syntax: sessionId=<guid> Example: sessionId=44G259DE-87B0-407D-8F2E-DCB7665DD0F0 |
| f | Description: The response format. The default response format is html. Values: <html | json> |
Example usage
https://myserver.esri.com/server/rest/services/Naperville/NetworkDiagramServer/diagramDataset?f=pjson
JSON Response syntax
An array of diagram template info that provides the following information:
- name—The name of the diagram template (String).
- description—The description of the diagram template (String).
- creationDate—The template creation date (Date).
- lastUpdateDate—The template's last update date (Date).
- usedByATier—Whether the template is used to generate a subnetwork system diagram in a tier (Boolean).
- enableDiagramExtend—Whether the template enables diagram extend (Boolean).
- enableDiagramStorage—Whether the template enables diagram storage (Boolean).
{
"diagramTemplateInfos": [
{
"name": "< template1 >",
"description": "< template1Description >",
"creationDate": < template1CreationDate >,
"lastUpdateDate": < template1LastUpdateDate >,
"usedByATier": < true | false >,
"enableDiagramExtend": < true | false >,
"enableDiagramStorage": < true | false >
},
...,
{
"name": "< templateN >",
"description": "< templateNDescription >",
"creationDate": < templateNCreationDate >,
"lastUpdateDate": < templateNLastUpdateDate >,
"usedByATier": < true | false >,
"enableDiagramExtend": < true | false >,
"enableDiagramStorage": < true | false >
}
]
}
JSON Response example
{
"diagramTemplateInfos": [
{
"name": "Basic",
"description": "",
"creationDate": -2209161600000,
"lastUpdateDate": 1520936616000,
"usedByATier": true,
"enableDiagramExtend": true,
"enableDiagramStorage": true
},
{
"name": "ExpandContainers",
"description": "",
"creationDate": -2209161600000,
"lastUpdateDate": 1520936659000,
"usedByATier": false,
"enableDiagramExtend": false,
"enableDiagramStorage": true
},
{
"name": "CollapseContainers",
"description": "",
"creationDate": -2209161600000,
"lastUpdateDate": 1520936644000,
"usedByATier": false,
"enableDiagramExtend": false,
"enableDiagramStorage": true
}
]
}
